The H Tilt-Turn Window
With European-Style functionality of an in-swing casement and tilt-in hopper, the H Tilt-Turn window pairs natural ventilation with high thermal performance. The aluminum-wood composite frame results in unrivaled performance, beauty, and durability for residential and commercial projects.
Two operations in one
Tilt-turn windows bring new flexibility to natural ventilation. In the tilt mode, the sash leans inward to create secure draft-free airflow. In the turn mode, the sash swings inward to allow maximum ventilation and full egress.
Composite Aluminum and Wood Construction
Hover over the components to learn more about the H Tilt-Turn construction.
Product Information
Interior wood frames are available in a variety of hardwood, softwood, and bamboo species including Forest Stewardship Council® certified materials. All wood materials are kiln dried and preservative treated to prevent deterioration.
Applied prior to assembly, our three-coat factory finish options include standard and custom paints, stains, and clearcoats.
Wood and bamboo are natural grain materials and will always exhibit individual characteristics and features. The overall look of the product will vary depending on grain, texture, and color of the wood. As such, these images are representative only and not to be considered an exact match of the final product.
Three finish options are available for our extruded aluminum profiles: powder coating, anodized finish, and Kynar® fluropolymer coatings.
Powder Coating, our most common finish, is highly durable in all environments. Select from our stock colors or custom colors.
Anodized finish gives any commercial or residential projects a timeless metallic aesthetic ranging from bright clear to deep black..
Kynar® PVDF coatings are exceptional for their ability to retain color and gloss keeping windows looking vibrant.

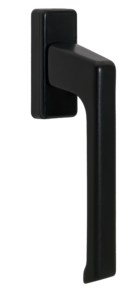

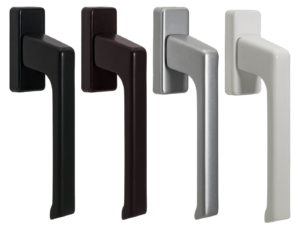

Derigent Handle
Aluminum handle available in various finishes.

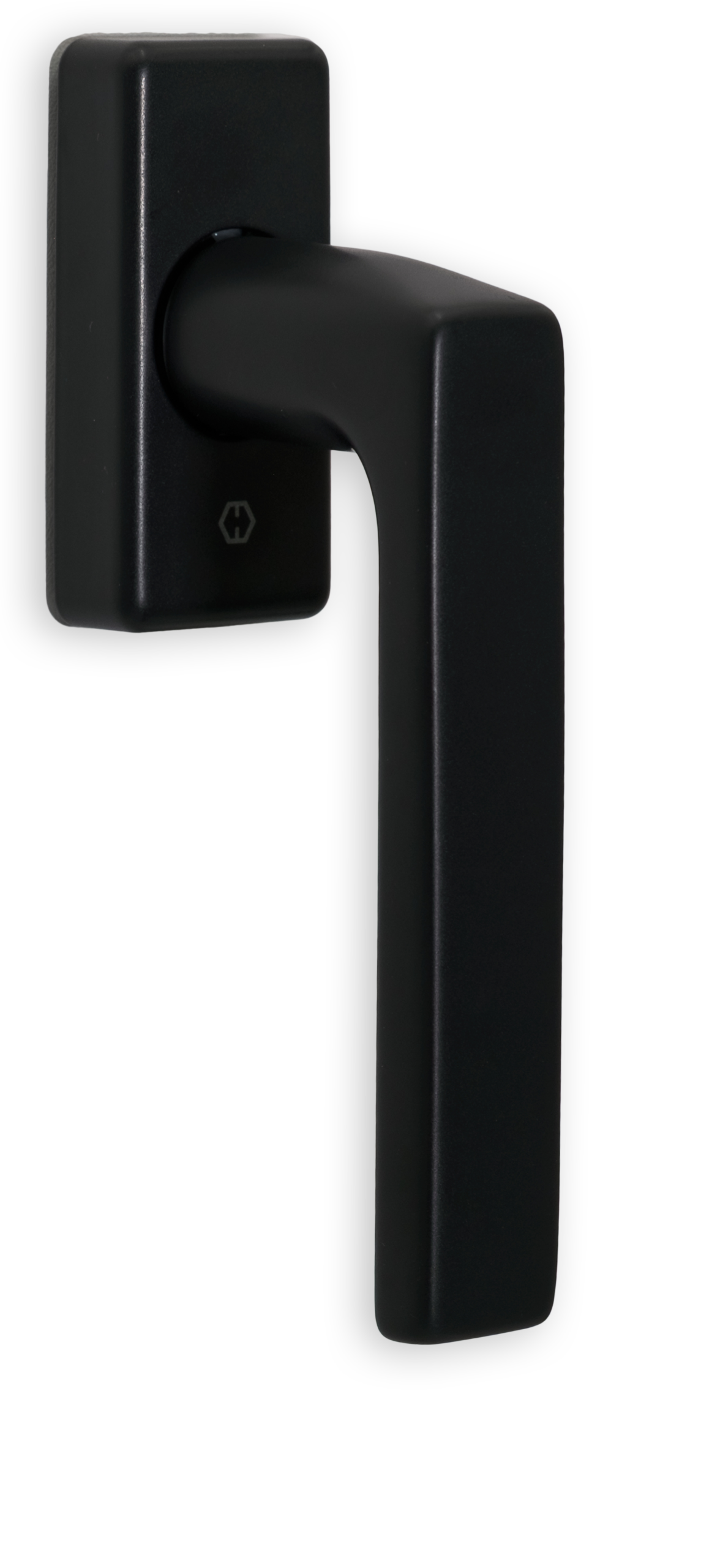

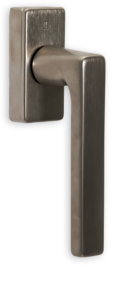

Dallas Handle
Brass handle available in various finishes.
Rule of Thumb
Tilt-turn sizing is dependent on the weight of the glass. In general, openings less than or equal to 29.75 ft² without exceeding the maximum dimensions for width or height are achievable for a variety of glass weights.
Egress Windows:
Tilt-Turn Windows can be used as egress windows.
- Min. egress size for rectangular windows:
30.5″ w x 40.24″ h - Min. egress size for square windows:
35.75″w x 35.75″h
Max. width: 67″
Min. width: 22″
Width at max. height: 37.75″
Max. height: 37.75″
Height at max. width:
64.25″
Min. height: 18″
The H Tilt-Turn Window is designed to be easily combined into filed mulled arrangements with other H Window door and window products.

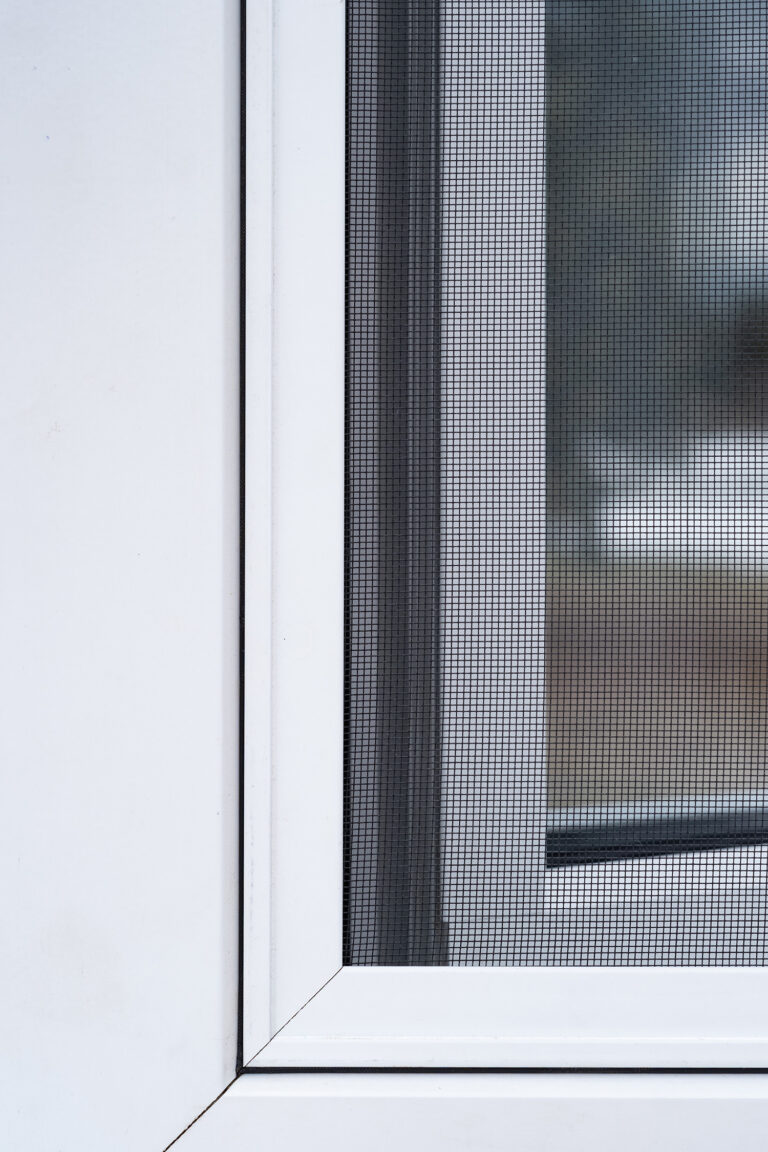

Our thoughtful design innovations eliminate mosquitos and maintenance! Extruded aluminum frames with staked corner keys are more robust than typical roll-form aluminum screen frames.
Screens are securely attached to the window frame with metal clips to allow easy removal.
Clear Advantage™ fiberglass screens provide more visibility and ventilation without sacrificing strength or durability. Other fabric options include aluminum mesh, pet resistant, extra strength, small insect, and sun protection.
Design versatility of the H Tilt-Turn Window is amplified with customizable accessories including divided lites and extension jambs.
Thermal Performance1
| Glazing Type2 | U-Factor Btu/ (hr·ft²·°F) NFRC 100 | SHGC NFRC 200 | VT NFRC 200 | CR NFRC 500 |
| Triple Pane – LoE 180 (#2, #5), 90% Argon, Endur Spacer | 0.17 | 0.39 | 0.48 | 77 |
| Triple Pane – LoE 270 (#2, #5), 90% Argon, Endur Spacer | 0.17 | 0.23 | 0.43 | 77 |
| Triple Pane – LoE 366 (#2), LoE 180 (#5), 90% Argon, Endur Spacer | 0.17 | 0.18 | 0.39 | 77 |
| Double Pane – LoE 180 (#2), 90% Argon, Endur Spacer | 0.27 | 0.44 | 0.55 | 63 |
| Double Pane – LoE 270 (#2), 90% Argon, Endur Spacer | 0.26 | 0.26 | 0.48 | 63 |
| Double Pane – LoE 366 (#2), 90% Argon, Endur Spacer | 0.26 | 0.19 | 0.45 | 64 |
Structural Performance3
| Performance Class & Grade Rating AAMA | CW-PG50 |
| Uniform Load Deflection ASTM E330 (L/175) | 50 PSF |
| Uniform Load Structural ASTM E330 (L/1000) | 75 PSF |
| Water Penetration Resistance ASTM E547 | 12 PSF |
| Air Leakage Resistance ASTM E283 | <0.10 cfm/ft² @ 6.2 PSF |
Acoustic Performance4
| Glazing Type | STC | OITC |
| Double Pane | 31 | 31 |
| Double Pane Laminated | 39 | 39 |
| Triple Pane | 39 | 39 |
Safety Performance
| Forced Entry Resistance ASTM F588 | Egress Compliant | ADA Compliant |
| Grade 10 | Yes, with proper size and hardware configuration | Yes, with ADA hardware configuration |
Notes:
- Testing based on NFRC gateway size 600mm x 1500mm.
- Additional glass configurations available.
- Results from lab testing, apply AAMA reductions for field testing.
- Values based on glass only.
